Pelican Protector Interior Sub-Panels

Download installation guide

Sub-Panel Installation Service

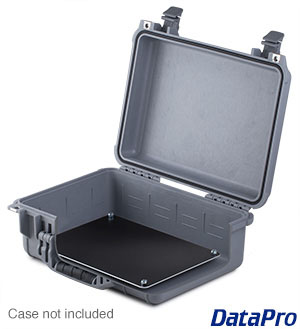

These machined aluminum interior panels can be installed on the floor of a Pelican case to mount electronics or other components. Each panel is designed to provide maximum usable space in a given case, including cutouts for interior features like handles and wheel wells. Panels are securely mounted with low-profile carriage bolts, and include 0.5" (1.27cm) standoffs to create space below the panel for cables, mounting hardware, etc.

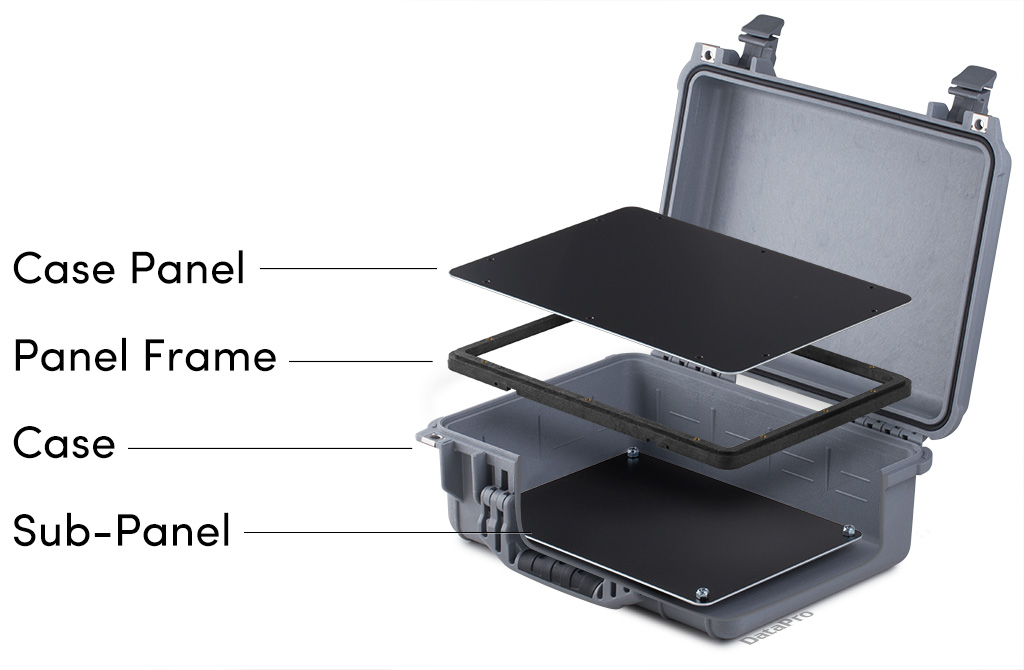

Sub-panels are often used in conjunction with a Pelican Case Panel or Modified Pelican Case.

Notes:

• Standard installation is weather-resistant, but will compromise waterproofing. For waterproof installation solutions please contact us.
• "Peli" branded cases from European suppliers may have slightly different dimensions and external features from US manufactured cases. Please double-check all measurements carefully to ensure your case is compatible. Need a sub-panel for something not listed here? Contact us for options!
• Panel shape and mounting hardware placement may vary depending on the size and features of the associated case. For detailed design and dimensional information, please see the drawings below:

Installation Guide
Sub-Panel Installation Guide			Download (PDF)

Part	Downloads
PP-S1120-AZD	Drawing (PDF)	Model (STEP)
PP-S1150-AZD	Drawing (PDF)	Model (STEP)
PP-S1200-AZD	Drawing (PDF)	Model (STEP)
PP-S1300-AZD	Drawing (PDF)	Model (STEP)
PP-S1400-AZD	Drawing (PDF)	Model (STEP)
PP-S1430-AZD	Drawing (PDF)	Model (STEP)
PP-S1440-AZD	Drawing (PDF)	Model (STEP)
PP-S1450-AZD	Drawing (PDF)	Model (STEP)
PP-S1460-AZD	Drawing (PDF)	Model (STEP)
PP-S1470-AZD	Drawing (PDF)	Model (STEP)
PP-S1490-AZD	Drawing (PDF)	Model (STEP)
PP-S1500-AZD	Drawing (PDF)	Model (STEP)
PP-S1510-AZD	Drawing (PDF)	Model (STEP)
PP-S1520-AZD	Drawing (PDF)	Model (STEP)
PP-S1550-AZD	Drawing (PDF)	Model (STEP)
PP-S1560-AZD	Drawing (PDF)	Model (STEP)
PP-S1600-AZD	Drawing (PDF)	Model (STEP)
PP-S1610-AZD	Drawing (PDF)	Model (STEP)
PP-S1620-AZD	Drawing (PDF)	Model (STEP)
PP-S1630-AZD	Drawing (PDF)	Model (STEP)
PP-S1640-AZD	Drawing (PDF)	Model (STEP)
PP-S1650-AZD	Drawing (PDF)	Model (STEP)
PP-S1660-AZD	Drawing (PDF)

Features:

• Precision CNC milled
• Includes mounting hardware
• Designed to fit specific models of Pelican Protector case

Specifications:

• Made from 0.080" anodized 5005 aluminum

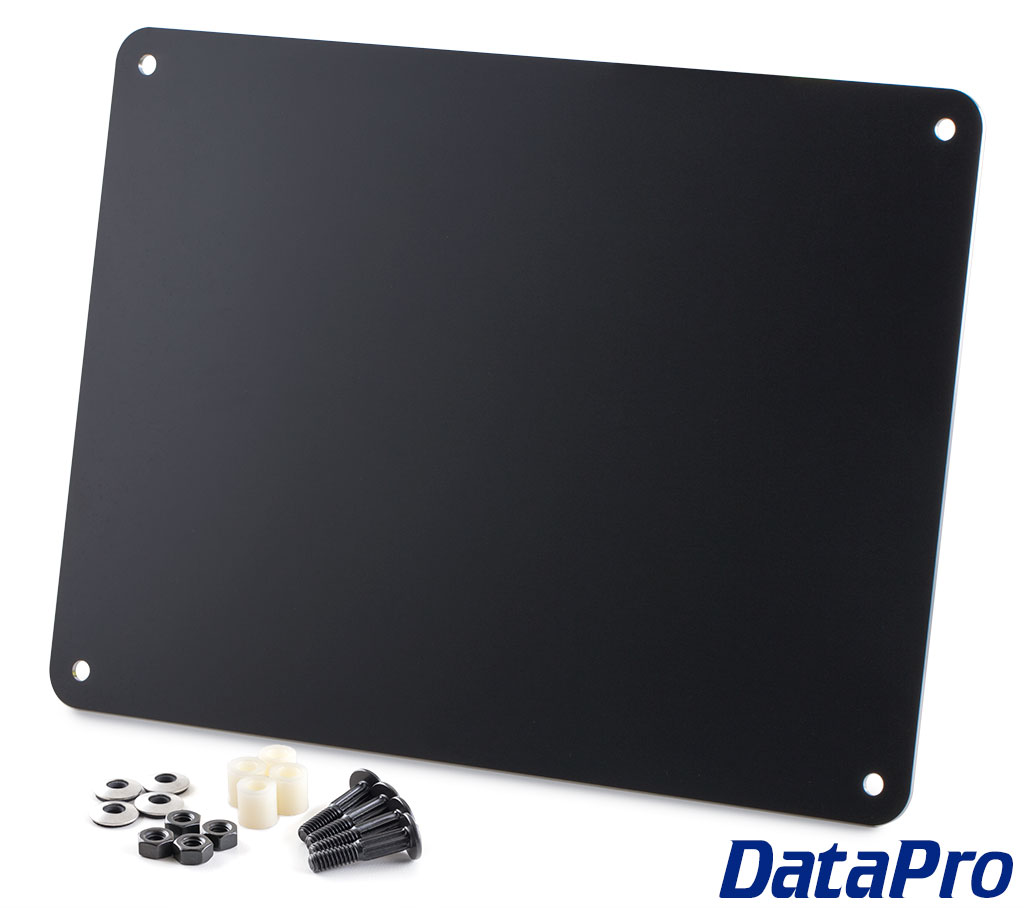

• Installation hardware: 1.25" Carriage Bolt (4), 0.5" Plastic Spacer (4), Hex Nut (4), Neoprene-Backed Washers (4)
