C19 to NEMA 5-15P Power Cord

C19 is a less common type of power connector often found on enterprise-class servers and network infrastructure. Standard computer equipment is more likely to use this cable's C13/C14 equivalent.

The DataPro 9230 series Computer Power cord is used to adapt a North American 5-15P style connector to any voltage-compatible device with a standard power supply style C19/C20 inlet.

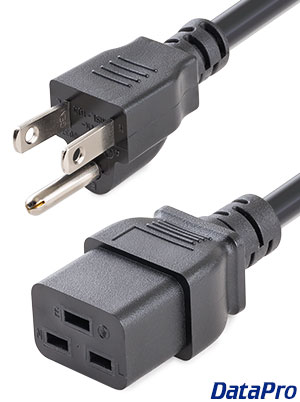

The device side has a C19 type beveled connector; the wall outlet end has a NEMA 5-15P 3-prong outlet connector.

Part	Downloads
9230	Drawing (PDF)	Model (STEP)

Specifications:

• REACH-224 Compliant
• RoHS Compliant
• Plug standard (1): IEC 60320 C19 - 250V - 10A
• Plug standard (2): NEMA 5-15P - 120V - 15A
• Cable: H05VV-F 3G 0.75mm²
