DB25 Horizontal Plate

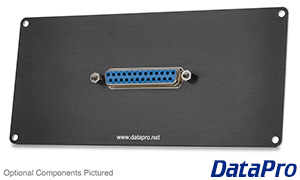

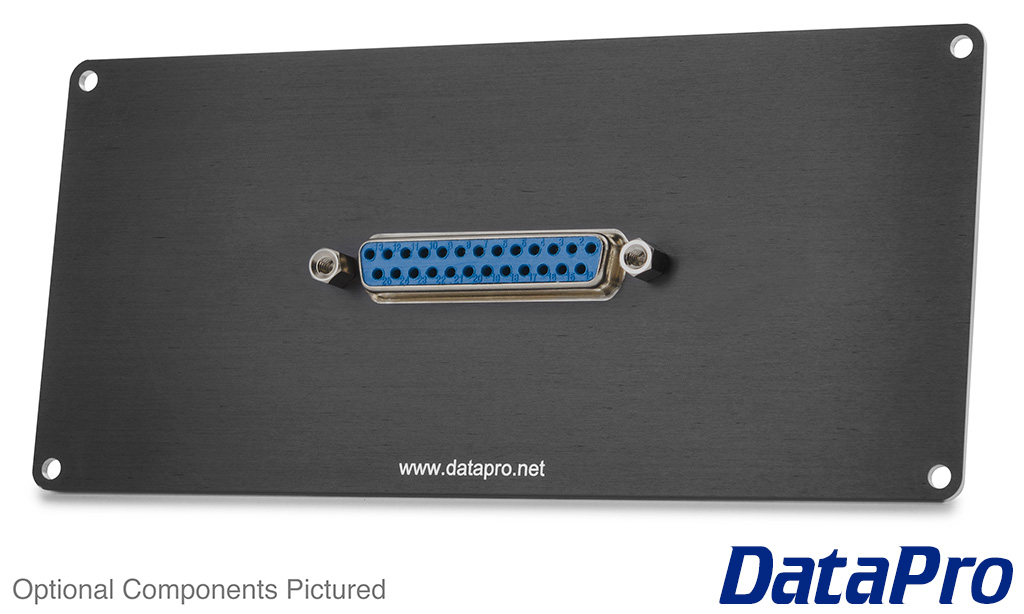

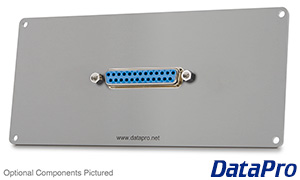

The DataPro 73500 DB25 Wall Plate  mounts one 25-pin DSub connector of any  type into your wall of choice:  on a marine bulkhead, industrial console, classroom desktop, or anywhere else a low-voltage box can be found.

This plate is a practical solution  for your home if your serial and/or parallel devices are either out of  easy reach of your computer, or if  you are sharing the device(s)  throughout your home or office.

The 25-pin DSub connector is most recognizable from its role as the parallel port on PC computers in the 1990's, but its legacy extends to serial RS232 and SCSI interfaces as well. With a panel-mounting port, you can allow access to any type of  device or computer through a DB25 connector.

By making small mounting holes and  screwing on these plates, you can  substitute this convenient little  interface for a messy hole  of dangling cables.

This plate is a standard 1-gang plate, measuring 2.5 inches by 5.5 inches, and is compatible with most low-voltage installation tools and mounting hardware.

We can also custom-build any plate you'd like to design, including plates with DB25 25-pin connectors, using our custom plate designer.

Part	Downloads
73500	Drawing (PDF)	Model (STEP)
