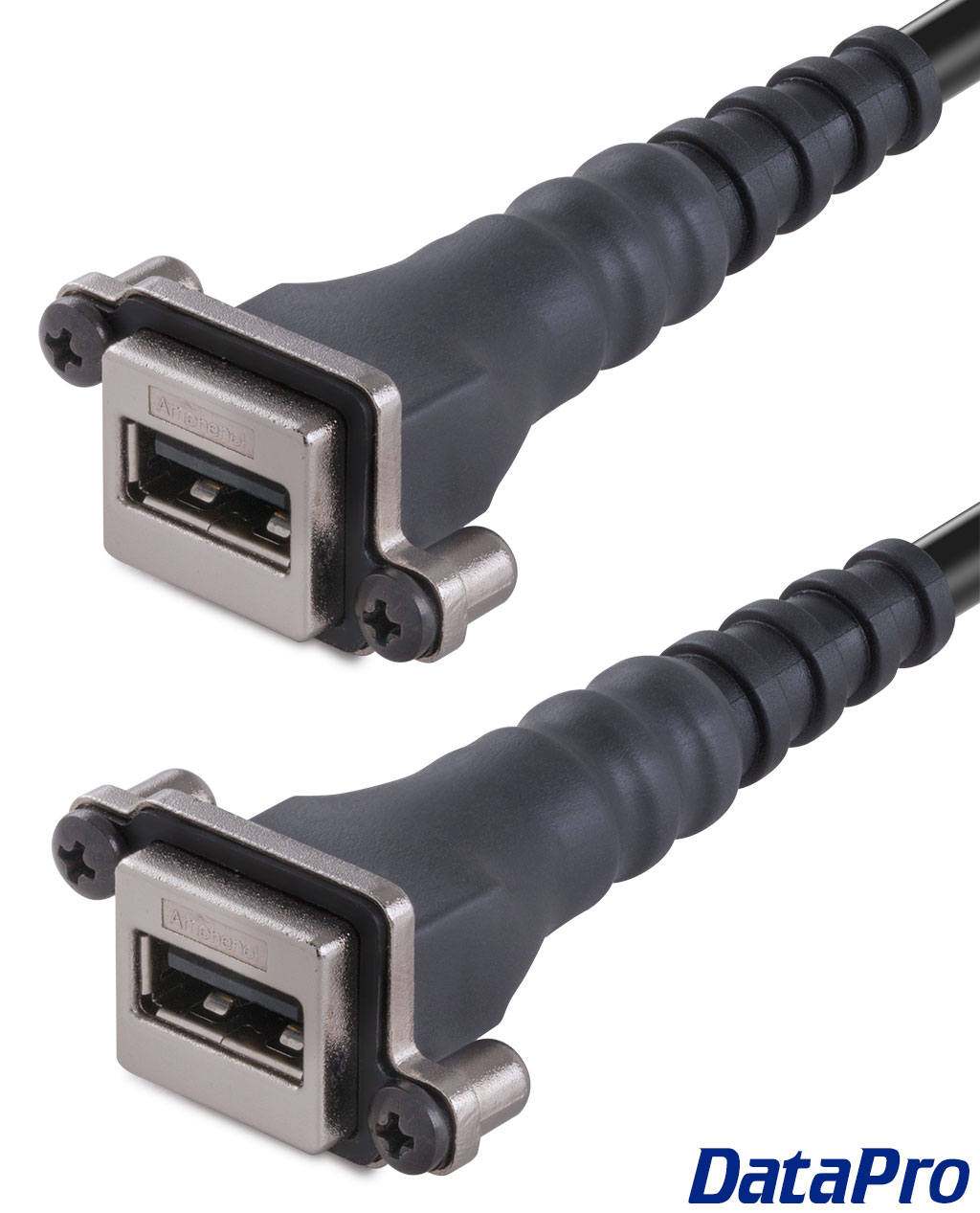

IP67 Waterproof Dual Panel-Mount USB-A 2.0 Female-Female Cable


Categories:
> IP-Rated Rugged Cables, Panel-Mount USB-A Cables, USB 2.0 Cables 		IP67 Waterproof Dual Panel-Mount USB-A 2.0 Female-Female Cable
This waterproof and dustproof USB 2.0 panel-mount cable features an IP67 rated female Type-A connector on each end.

1588-00W   USB 2.0 A Waterproof Dual P/M
Custom build at $60.00 + $1.00 per foot.
Some custom products may not be REACH compliant.		   Add to Cart

As an alternative to bulky waterproof USB connectors that require a screw-on cap, ours is waterproof even when directly exposed to the elements. Consisting of a watertight connector and gasket, it creates a seal around its cutout.

Waterproof Panel Mount USB Connector Diagram

This part's IP67 rating means it can be submerged up to 1m (3.3f). As opposed to IP68, which covers a depth greater than 1m. Perfect for extending USB ports to a flying bridge, marine dash panel, motorcycle, or anywhere else that may experience splashing and light immersion. Also useful in industrial and manufacturing applications.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable or active USB booster.

Waterproof USB-A Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1588WPDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
CL2 In-Wall Rated
IPC Compliant
Made in the USA
Related Products:

Features:

  • USB socket is waterproof and dustproof even without a cover
  • Standard USB Type-A female connectors
  • Custom length, available up to 15ft (more with boosters)
  • USB 1.1/2.0 High-Speed Compatible
  • 4-40 mounting screws included

Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
  • IP67 rated (Submersion up to 1m, or 3.3ft)
