Panel-Mount USB 3.0 Type-B to Thumbscrew Locking Micro-B Cable


Categories:
> Panel-Mount USB-B Cables, USB 3.0 and 3.1 Products 		Panel-Mount USB 3.0 Type-B to Thumbscrew Locking Micro-B Cable

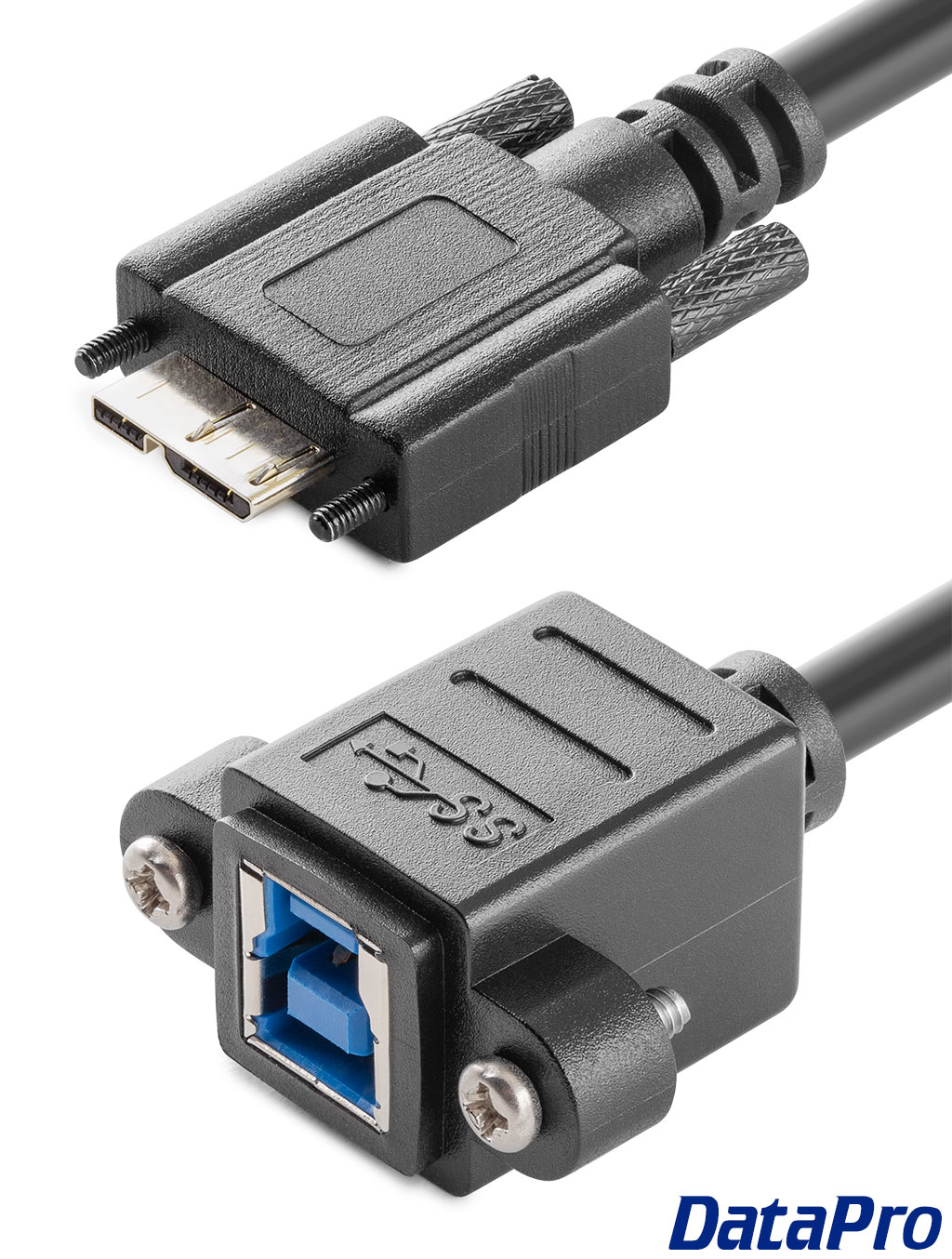

This cable features a female USB 3.0 Type-B panel mount connector on one end, and a USB 3.0 Micro-B connector with USB3 Vision compliant dual thumbscrews on the other.

1686-01C   P/M USB 3.0 B to Micro B w/ TS   1 ft $ 16.95   923 in stock   Add to Cart
1686-02C   P/M USB 3.0 B to Micro B w/ TS   2 ft $ 18.95   473 in stock   Add to Cart
1686-03C   P/M USB 3.0 B to Micro B w/ TS   3 ft $ 20.95   200 in stock   Add to Cart

This cable features a female USB 3.0 Type-B connector on the panel-mount end, and a male USB 3.0 Micro-B connector with USB3 Vision compatible dual thumbscrews on the other.

USB B Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1686PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
Related Products:

Features:

  • Panel-mountable Female USB 3.0 Type-B connector
  • USB3 Vision Compatible dual thumbscrews
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)

Specifications:

  • 1x Panel-Mountable Female USB 3.0 Type-B Connector
  • 1x Male USB3 Vision Compatible Micro-B Connector with thumbscrews
  • USB 3.0, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • Aluminum/Mylar Foil Wrap + Braided Shielding
  • Wire Gauge 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
