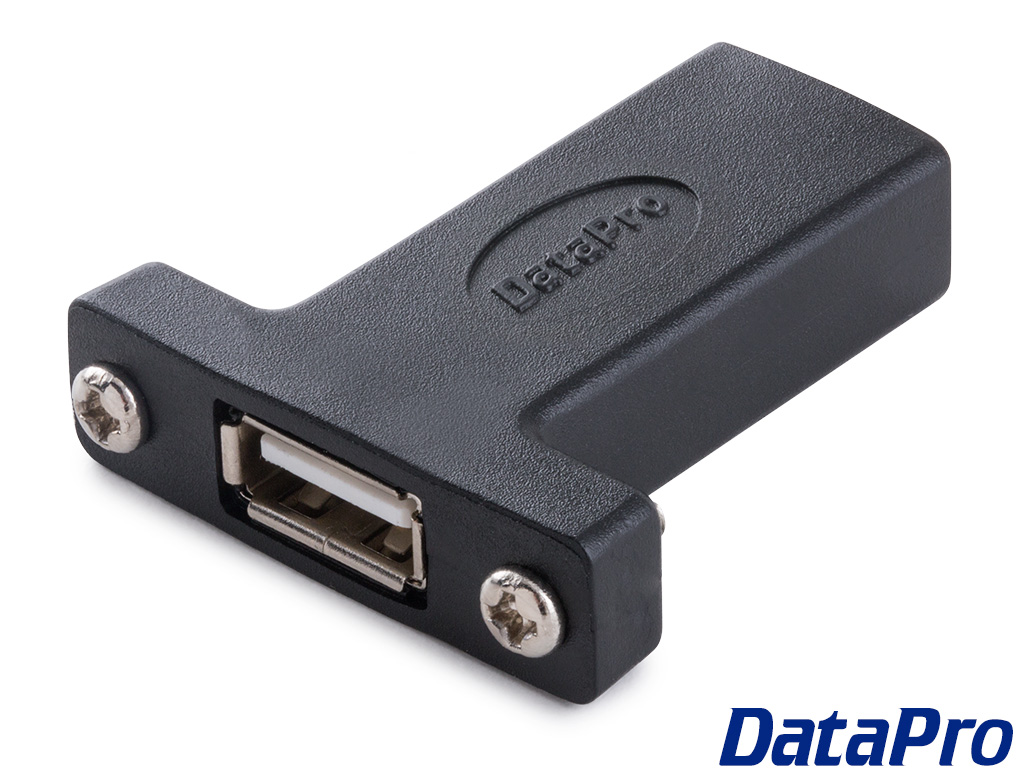

Panel-Mount USB-A 2.0 Coupler (Non-Flex)


Categories:
> Screw-mounted Couplers 		Panel-Mount USB-A 2.0 Coupler (Non-Flex)
This panel-mount USB 2.0 Type-A coupler is a simple and economical solution for adding a USB 2 port to a plate or panel.

CCP-USB-A-FF   Coupler Panel-Mount USB-A F/F   EACH $ 7.95   2292 in stock   Add to Cart

This USB 2.0 Type A passthrough coupler is a simple and economical solution for adding a USB port to a plate or panel.  This is an alternate version of our CCP-USB-A-FLX.  If you're not sure which one would work best for your application, feel free to contact us!





Click here for PDF version

Drawings & Models:

PartDownloads
CCP-USB2PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
Related Products:

Features:

  • Panel-Mountable Female USB Type-B Connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts

Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
