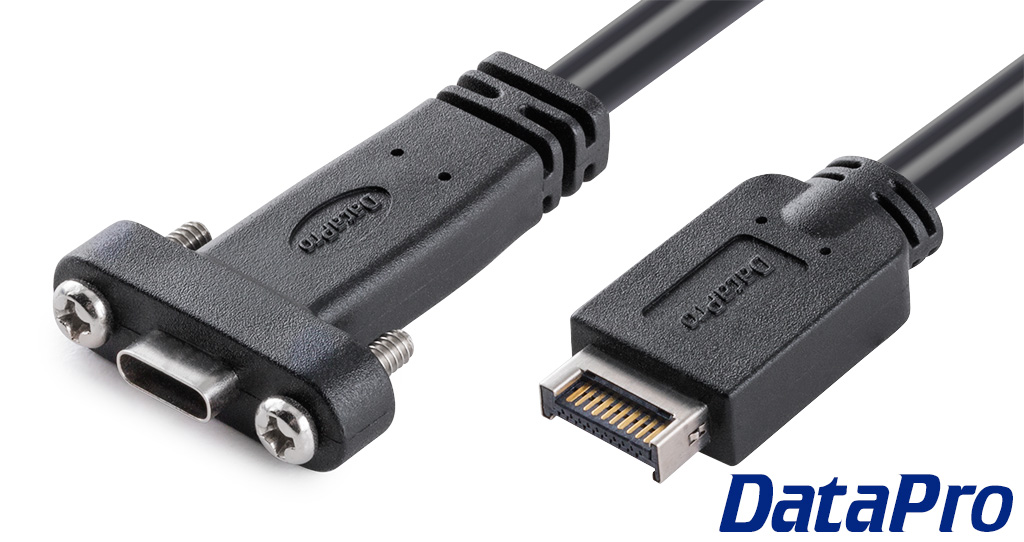

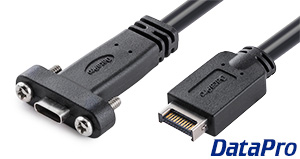

Panel Mount USB-C to USB Type E Motherboard


Categories:
> Panel-Mount USB-C Cables, USB-C Cables, Internal Components 		Panel Mount USB-C to USB Type E Motherboard
Connect a panel-mountable USB-C port directly to a Type-E motherboard header with this convenient cable

1671-01C   USB Type C P/M to Type E   1 ft $ 17.95   11 in stock   Add to Cart
1671-02C   USB Type C P/M to Type E   2 ft $ 19.95   437 in stock   Add to Cart
1671-03C   USB Type C P/M to Type E   3 ft $ 21.95   469 in stock   Add to Cart

Connect a panel-mountable USB-C port directly to a Type-E motherboard header with this convenient cable.

Drawings & Models:

PartDownloads
1671PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
Related Products:

Features:

  • Panel-mountable Female USB Type-A connector
  • USB Motherboard Header Type-E connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)

Specifications:

  • 1x Panel-Mountable Female USB Type-C Connector
  • 1x Male USB Motherboard Header Type-E connector
  • USB 3.1, supports SuperSpeed USB 10Gb/s
  • Aluminum/Mylar Foil Wrap + Braided Shielding
  • RoHS Compliant
  • CL2 Rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: Hand tighten, 2.0 in-lbs maximum torque
