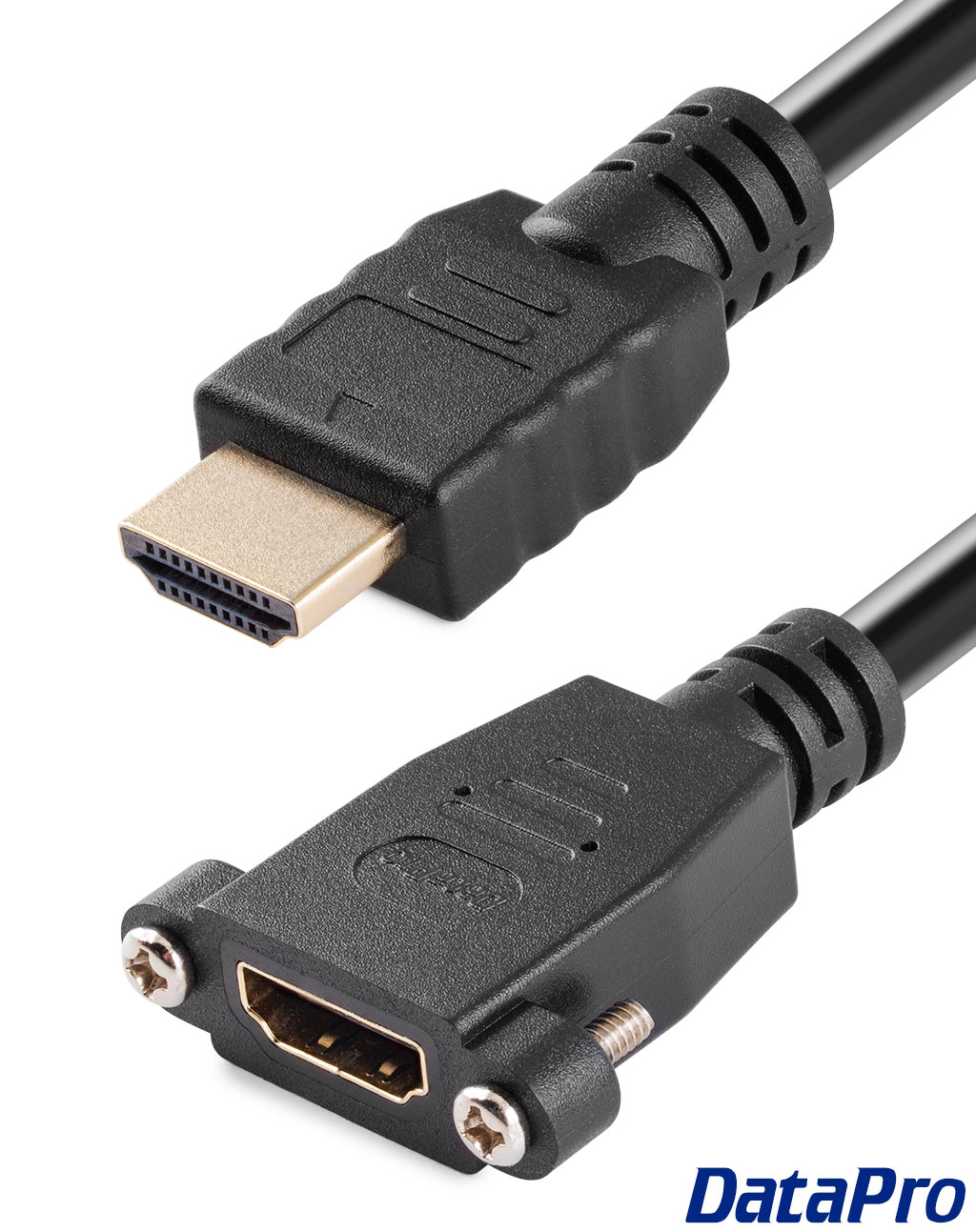

Thin HDMI Panel Mount Extension Cable


Categories:
> Digital Video Panel-Mount Cables, HDMI Cables 		Thin HDMI Panel Mount Extension Cable
This 30 AWG version of our popular Panel-Mount HDMI Cable has additional flexibility for short distance runs.

1160-0008T   HDMI Panel-Mount Ext. 30AWG   8IN $ 26.50   387 in stock   Add to Cart
1160-01T   HDMI Panel-Mount Ext. 30AWG   1 ft $ 27.00   235 in stock   Add to Cart
1160-02T   HDMI Panel-Mount Ext. 30AWG   2 ft $ 28.00   469 in stock   Add to Cart
1160-03T   HDMI Panel-Mount Ext. 30AWG   3 ft $ 29.00   239 in stock   Add to Cart

With lower gauge internal wiring, this version of our popular 1160 Panel Mount HDMI Cable offers a tighter bend radius and greater flexibility, while retaining full speed and capability.

HDMI Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1160TPDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
HDMI 1.4 with Ethernet
2560x1600 Capable
4K UHD Capable
Related Products:

Features:

  • Panel-mountable Female HDMI Connector
  • CL-2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded against RFI and EMI interference

Specifications:

  • 1x Panel-Mountable Female HDMI Connector
  • 1x Male HDMI Connector
  • Supports resolutions up to 4K UHD @ 60Hz
  • HDMI 2.0 Compatible
  • HDMI with Ethernet
  • HDR10 Compatible
  • 3D Capable
  • Wire Gauge 30 AWG
  • RoHS Compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
