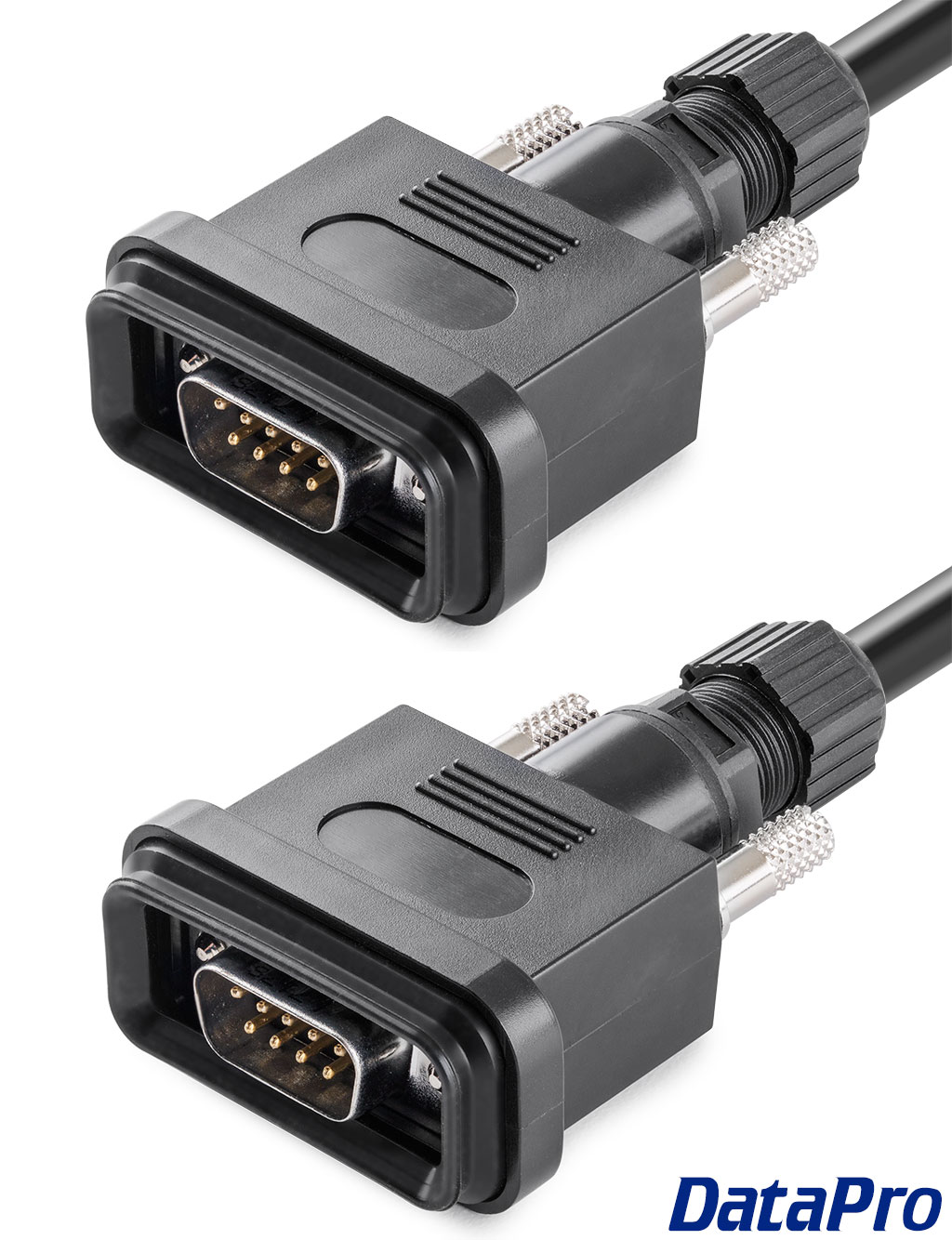

Waterproof IP67 DB9 Male-Male Serial Cable

The DataPro 1125W series is an IP67-rated 9-pin DB9, male to male serial cable that features a silicone gasket to create an IP67-rated watertight seal when attached to a panel-mount connector on a smooth surface.

It is wired straight through, and available in custom lengths.

9-pin cables are capable of carrying a number of different communication standards, so we do not restrict the maximum length of custom 9-pin cables when ordering. Please note however that we do not accept returns of custom products, and recommend verifying that the specified length will work for your intended application and standard before ordering. RS-232 has a maximum recommended cable length of 50ft (15m), while RS-422, RS-423, and RS-485 can reach as far as 3900ft (1200m) at reduced speeds.

Part	Downloads
1125W	Drawing (PDF)	Model (STEP)

Features:

• Create IP67-rated waterproof seal for a 9-pin DB9 male to male cable when attached to a panel-mount connector on a smooth surface.

Specifications:

• 2x 9-pin DB09, male connectors
• Gold-plated contacts
• Silicone gasket
• IP67-rated
• Wire Gauge 28 AWG
