USB 3.0 Super-Speed Panel-Mount B Extension

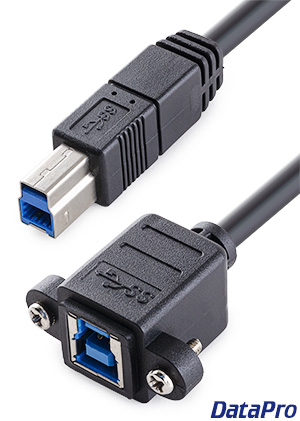

This USB 3.0 SuperSpeed panel-mount B extension cable is perfect for device enclosures, wall panels for  computers, and podiums for presentation laptops. It provides a device-style B-type USB port in any plate or enclosure, and includes all the speed and features of USB 3.0.

In the USB environment, the squarish B-type connector is used as the USB port on peripherals and external devices: printers, scanners, cameras, hard drives, et cetera. If your wiring situation has you looking for remote access to a device, such as a shared printer or ceiling-mounted projector, using a panelmount USB-B cable will allow your end-users to plug in their computers using any standard USB cable. It's quick, convenient, and hard to mess up.

Simply connect the B male into your USB 3.0 device, mount the B female onto your panel or enclosure, and  then connect your PC to this with a standard USB A/B cable. The 1691 line of B-type mounting USB cables are backwards compatible with USB 2.0, and are made with blue plastic interiors to clearly identify them as 3.0 ports.

The wiring in this extension cable is straight-through, so it will function properly as expected in all scenarios.

Click here for PDF version

Part	Downloads
1691	Drawing (PDF)	Model (STEP)

Features:

• Panel-mountable Female USB Type-B connector
• CL2 rated for in-wall use
• Includes mounting hardware
• Gold-plated contacts
• Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)

Specifications:

• 1x Panel-Mountable Female USB Type-B Connector
• 1x Male USB Type-B Connector
• USB 3.0, supports SuperSpeed USB 5Gb/s
• Backwards compatible with USB 1.1/2.0
• Aluminum/Mylar Foil Wrap + Braided Shielding
• Wire Gauge 28 & 24 AWG
• RoHS Compliant
• CL2 Rated
• Embedded 4-40 nuts with mounting screws included
• Allowable panel depth: 2.5mm (full mating)
• Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
