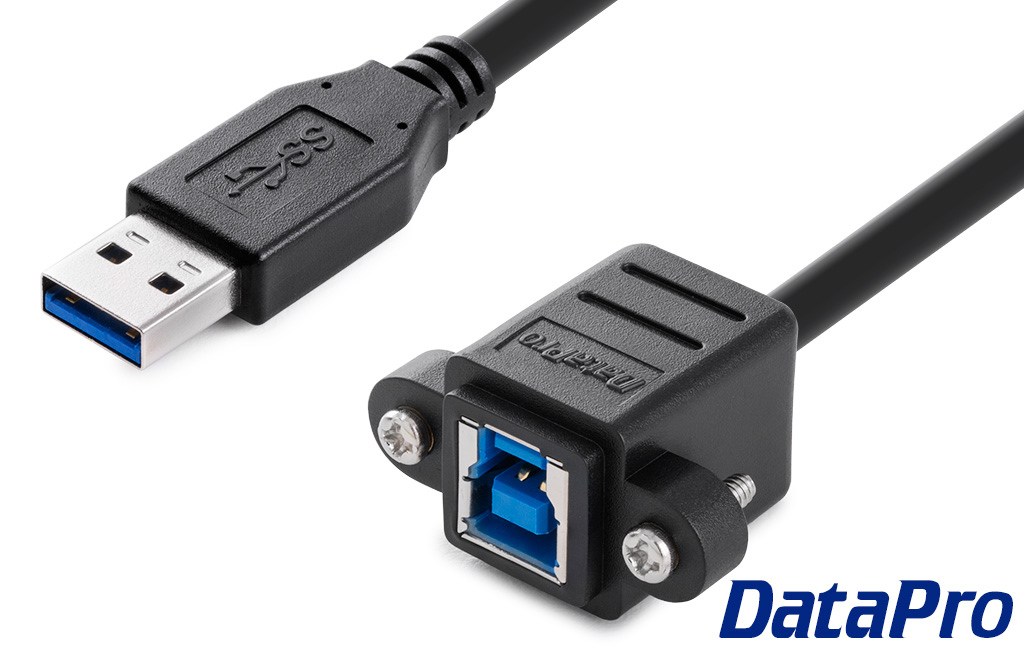

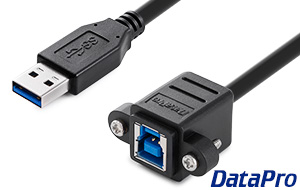

Panel Mount USB 3 Type-B to Type-A F-M


Categories:
> Panel-Mount USB-A Cables, Panel-Mount USB-B Cables, USB 3.0 and 3.1 Products 		Panel Mount USB 3 Type-B to Type-A F-M
This cable features a female Panel-Mount USB Type-A connector on one end, and a male USB Type-A connector on the other.

1689-01C   USB 3.0 Panel-Mount B to A   1 ft $ 13.95   565 in stock   Add to Cart
1689-02C   USB 3.0 Panel-Mount B to A   2 ft $ 15.95   722 in stock   Add to Cart
1689-03C   USB 3.0 Panel-Mount B to A   3 ft $ 17.95   330 in stock   Add to Cart
1689-04C   USB 3.0 Panel-Mount B to A   4 ft $ 19.95   73 in stock   Add to Cart
1689-06C   USB 3.0 Panel-Mount B to A   6 ft $ 21.95   62 in stock   Add to Cart
1689-10C   USB 3.0 Panel-Mount B to A   10 ft $ 27.95   40 in stock   Add to Cart
1689-15C   USB 3.0 Panel-Mount B to A   15 ft $ 32.95   39 in stock   Add to Cart

This cable features a female Panel-Mount USB Type-A connector on one end, and a male USB Type-A connector on the other.

USB B Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1689PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
Related Products:

Features:

  • Panel-mountable Female USB Type-B to Type-A
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)

Specifications:

  • 1x Panel-Mountable Female USB 3 Type-B Connector
  • 1x Male USB 3 Type-A Connector
  • USB 3.0, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • Aluminum/Mylar Foil Wrap + Braided Shielding
  • Wire Gauge 30, 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
